SURFACE GRINDER

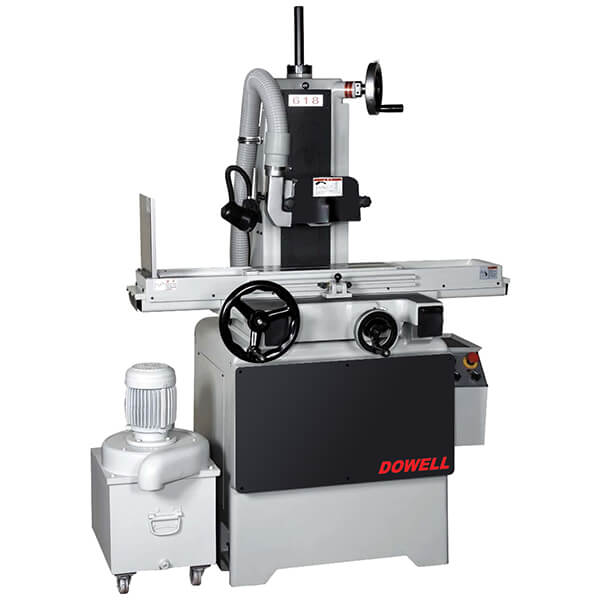

DSG-618 MANUAL SADDLE SURFACE GRINDER


Surface Grinder - Manual Saddle Surface Grinder - DSG-618

DSG-618

DESCRIPTION UNIT DSG-618
General Capacity Table size (lxw) mm 150x460
Max.grinding length mm 475
Max.grinding width mm 160
Distance from table surface to spindle center mm 400
Standard mag. Chuck size mm 150x450
Longitudinal Movement Manual travel mm 485
Hydraulic traverse mm 485
Hydraulic feed (table speed) approx. m/min 1~25
Cross Movement Manual travel mm 180
Hand feed per revolution mm 5
Hand feed per graduation mm 0.02
Vertical Downfeed Hand feed per revolution mm 1
Hand feed per graduation mm 0.005
Grinding Wheel Wheel size (diax width xbore) mm Ø180x13x31.75
Spindle speed (50/60HZ) r.p.m 3000/3600
Motor Spindle drive motor HP 1.5
Hydraulic motor HP 1
Weight Net weight / gross weight (approx.) kg 910/1040
Packing Size Length × width × height mm 1560x1300x2200

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

  • Grinding wheel
  • Wheel flange with extractor
  • Balancing arbor
  • Diamond dresser and base
  • Working lamp
  • Leveling plate
  • Leveling screw & nut
  • Tool box with tools
  • Operation manual & Inspection report
  • Touch-up paint
  • Permanent magnetic chuck
    Permanent magnetic chuck
  • Electro magnetic chuck
    Electro magnetic chuck
  • Demagnetizer
    Demagnetizer
  • Inclinable permanent mag. Chuck
    Inclinable permanent mag. Chuck
  • Coolant & Dust unit
    Coolant & Dust unit
  • Magnetic separator and coolant system
    Magnetic separator and coolant system
  • Auto. Paper Strip Filter with coolant system
    Auto. Paper Strip Filter with coolant system
  • Auto. Paper strip filter with magnetic separator and coolant system
    Auto. Paper strip filter with magnetic separator and coolant system
  • Inverter
    Inverter
  • Demagnetizer
    Demagnetizer
  • Digital readout
    Digital readout
  • On line wheel balance system(Manual)
    On line wheel balance system(Manual)
  • Flange
    Flange
  • Angle sine dresser
    Angle sine dresser
  • Precision universal angle vise
    Precision universal angle vise
  • Tangimatic dresser
    Tangimatic dresser
  • Manual overhead dresser
    Manual overhead dresser
