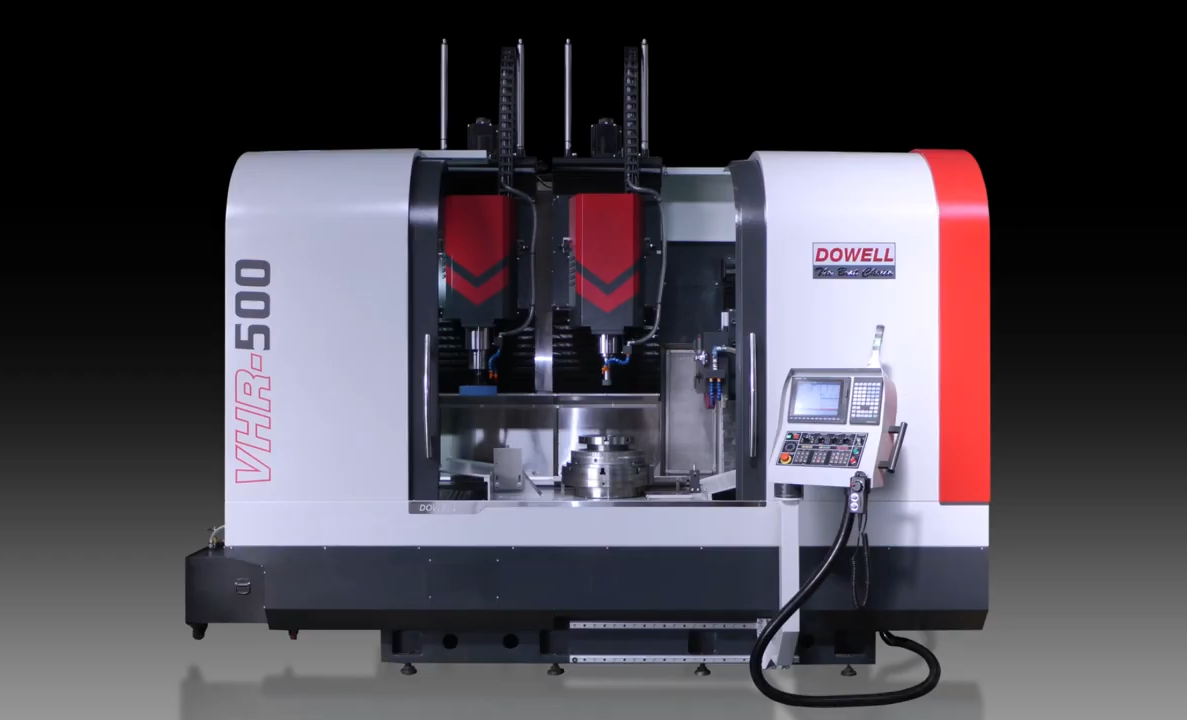

What is a CNC Vertical Grinding Machine?
A CNC Vertical Grinding Machine is a high-precision equipment designed to perform grinding processes with the workpiece held vertically. Unlike horizontal grinding machines, the vertical configuration allows for better handling of large, heavy, or complex-shaped components. These machines are widely adopted in industries that require superior accuracy, surface finish, and machining stability.
Key Features of CNC Vertical Grinding Machines
High-Rigidity Structural Design
Enhanced machine body structure to improve vibration resistance and stability, ensuring machining precision.
CNC Numerical Control System
Equipped with advanced CNC systems, providing multi-axis synchronous machining capabilities to simplify the manufacturing of complex components.
High-Efficiency Precision Machining
Suitable for various machining needs, including flat surfaces, inner holes, and outer diameters, achieving micron-level precision.
Multi-Purpose Design
Capable of handling various materials, including metals, ceramics, and hard alloys, meeting diverse industrial requirements.
Automation Features
Comes with automated loading and unloading devices and grinding auto-correction functions to enhance production efficiency and reduce manual intervention.
Applications Across Industries
- Automotive Industry: Grinding of gears, shafts, and bearing components for improved durability and performance.
- Aerospace: Precision machining of turbine blades, jet engine parts, and high-strength alloys.
- Tool and Die Manufacturing: Mold components requiring exceptional surface finish and dimensional accuracy.
- Energy Sector: Components for wind turbines, nuclear power plants, and oilfield equipment.
- Heavy Machinery: Large-scale industrial parts that demand consistent precision under heavy loads.
CNC Vertical Grinding Machine vs. Horizontal Grinding Machine
| Aspect |
Vertical Grinding Machine |
Horizontal Grinding Machine |
| Workpiece Orientation |
Vertical (better for heavy or large parts) |
Horizontal (suitable for smaller workpieces) |
| Stability & Rigidity | High rigidity, excellent vibration resistance | May require additional fixtures |
| Applications | Automotive gears, bearings, turbines, aerospace parts | General machining, small to medium parts |
| Space Efficiency | Requires less floor space | Larger footprint |
| Precision | Micron-level accuracy for demanding industries | Good accuracy but less suited for ultra-precision |
For manufacturers handling large, heavy-duty, or high-precision parts, the CNC vertical grinding machine is often the better choice.
Latest Advances in CNC Vertical Grinding Machines
As industries move toward smart manufacturing and Industry 4.0, CNC vertical grinding machines are evolving with:
- AI-Powered Process Optimization – Real-time analysis for improved efficiency and predictive maintenance.
- IoT Connectivity – Machines integrated into smart factory systems for data monitoring.
- Hybrid Machining – Combining grinding with milling or turning in one setup.
- Eco-Friendly Solutions – Coolant recycling systems and energy-efficient motors to support sustainable production.
Making the Right Choice for Your Precision Machining Needs
CNC Vertical Grinding Machines are transforming industries that demand high precision, versatility, and automation. Whether you’re in automotive, aerospace, tool making, or energy production, these machines deliver unmatched performance for critical components.
By understanding their features, applications, and the latest technological advances, manufacturers can make informed decisions and stay ahead in the competitive machining landscape.
