Features
- Spindle motor adopts V3 Grade provides good water resistance and resist high humidity.
- X.Z axis feeding uses high stiffness and rigidity linear roller guides allowing smoothly X.Z feeding whilst maintaining high stiffness.
- Machine equips fine pole electrical magnetic chuck provides bigger holding power and able to attract small workpiece firmly.

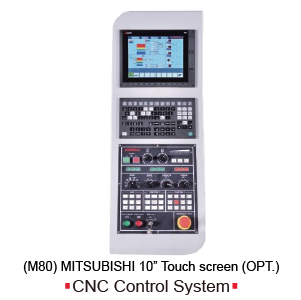

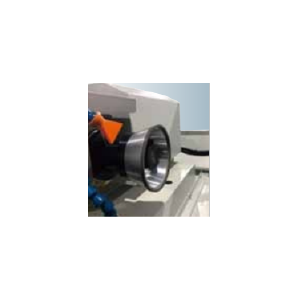

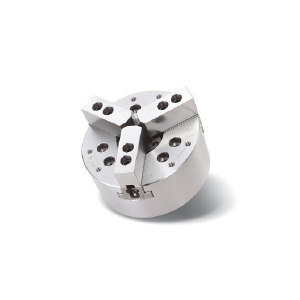

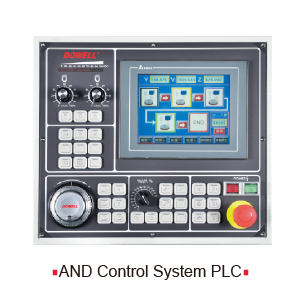

Specification

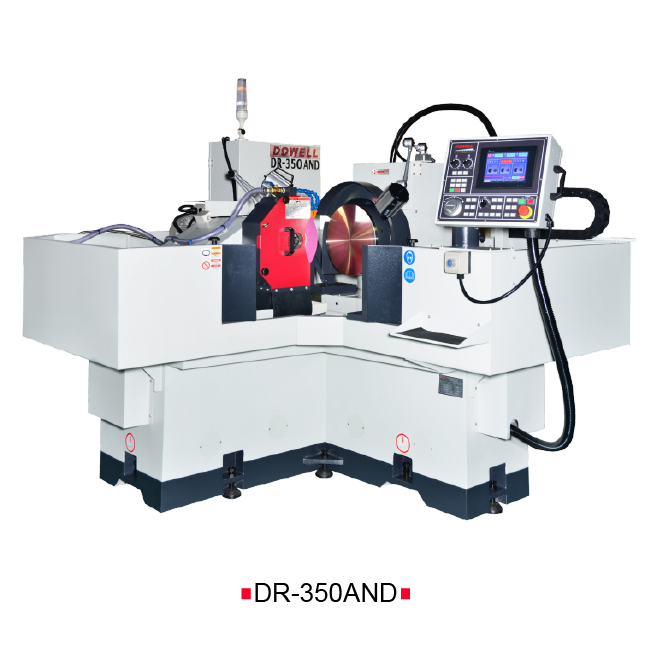

| Description | DR-350AND | DR-500AND |
| Rotary magnetic chuck dia. | 350mm | 500mm |
| Max. grinding height | 250mm | 250mm |
| Chuck max. loading | 80kg | 100kg |
| Rotary magnetic chuck speed. | 150r.p.m. | 150r.p.m. |
| Rotary magnetic chuck horse power. | 1kw Servo Motor | 2kw Servo Motor |
| Spindle motor. | 5HP | 7.5HP |
| Spindle speed (50/60Hz) | 1450/1750r.p.m. | 1450/1750r.p.m. |
| Spindle axis cross feeding (per revolution) | x1, x5, x10, x50(MPG)/0.1, 0.5, 1.5mm | x1, x5, x10, x50(MPG)/0.1, 0.5, 1.5mm |
| Spindle axis cross feeding (per graduation) | x1, x5, x10, x50(MPG)/0.001, 0.005, 0.01, 0.05mm | x1, x5, x10, x50(MPG)/0.001, 0.005, 0.01, 0.05mm |
| Wheel size (dia x width x bore) | 355x(20~50)x127mm | 355x(20~50)x127mm |
| Net weight / gross weight (approx.) | 3200/4000kg | 4000/4600kg |
| Packing size (LxWxH)(mm) | 3000x2300x2000mm | 3500x2300x2200mm |
※ The manufacturer reserves right to modify the design , specification mechanisms etc. without notice.

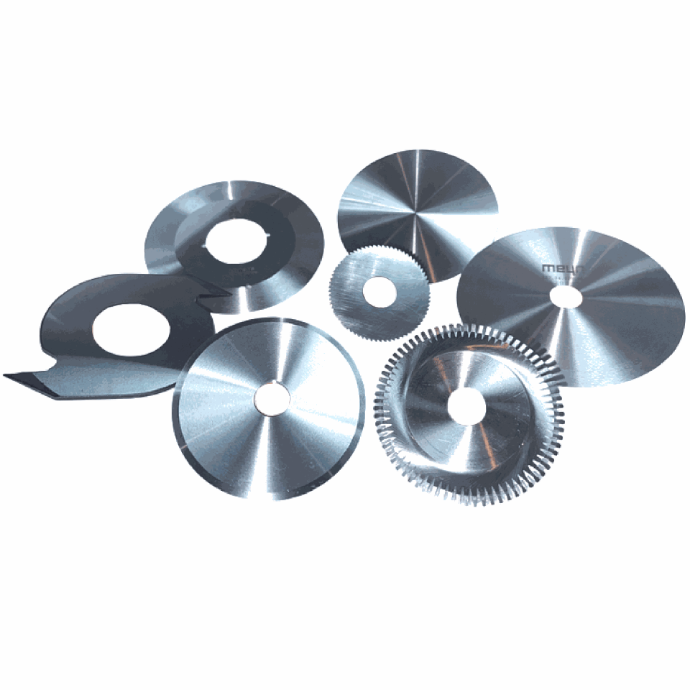

Workpiece Sample
