Features
- Precision grinding machine.
- Automatic Trim Compensation.
- On line spindle vibration monitor.
- Machine base fully supported design creating high rigidity structure.
Specification
| Description | DSG-2045CNC | DSG-2450CNC |
| Table size (lxw) | 500x1000mm | 600x1000mm |
| Distance of table surface to spindle surface center | 400mm | 400mm |
| Table Load | 300kg | 400kg |
| Table Spindle | 25m/min | 25m/min |
| Spindle motor | 15/20HP(Opt.) | 15/20HP(Opt.) |
| Spindle speed(50/60HZ) | Max.2000r.p.m. | Max.2000r.p.m. |
| Vertical hand wheel down feed per graduation | x1,x10,x100 (MPG) / 0.001,0.01,0.1mm | x1,x10,x100 (MPG) / 0.001,0.01,0.1mm |
| Control system | Mitsubishi Control(Std.)/Fanuc(Opt.) | Mitsubishi Control(std.)/Fanuc(Opt.) |
| Net weight/gross weight | 13000/14500kg | 14000/15500kg |
| Packing size(LxWxH) | 4800x3350x3500mm | 5000x3400x3500mm |
※ The manufacturer reserves right to modify the design , specification mechanisms etc. without notice.
Workpiece Sample

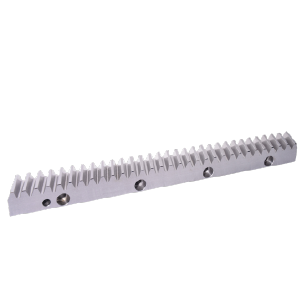

Rack

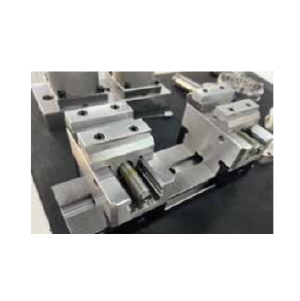

Vise
