Features
- Meehanite Class FC30 casting with high rigid and wear resistance guide way insure machine permanent accuracy.
- Spindle is designed for providing excellent stability and heavy duty grinding.
- V3 grade spindle motor with good waterproof and moisture resistant design.
- Vertical feeding guide way use high rigid roller linear guideway (block x 6) provide smooth movement and rigidity.

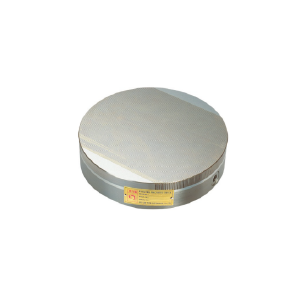

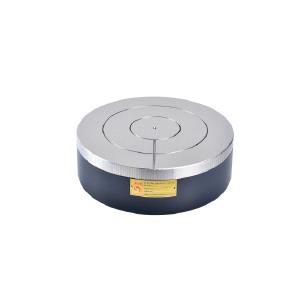

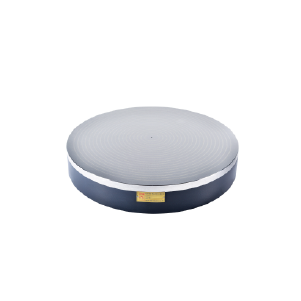

- Work table with fine pitch magnetic chuck has powerful attractive force and specalized for small workpiece.
Specification

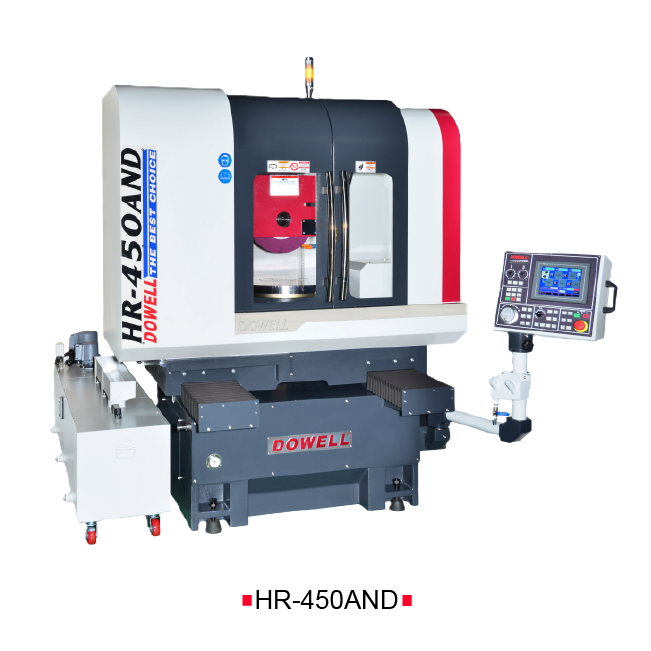

| Description | HR-450 |
| Rotary magnetic chuck dia. | 450mm |
| Max. grinding height | 225mm |
| Distance of table surface to spindle surface center | 450mm |
| Rotary magnetic chuck speed | 10~200r.p.m. |
| Rotary magnetic chuck horse power | 2kw |
| Spindle speed | 7.5/10HP(Opt.) |
| Spindle speed (50/60Hz) | 1450/1750r.p.m. |
| Auto down feed horse power | Servo Motor 500w |
| Vertical hand wheel down feed per revolution | x1, x5, x10(MPG)/0.1, 0.5, 1mm |
| Vertical hand wheel down feed per graduation | x1, x5, x10(MPG)/0.001, 0.005, 0.01mm |
| Wheel size (dia x width x bore) | 355x38x127mm |
| Net weight / gross weight (approx.) | 2950/3600kg |
| Packing size (LxWxH) | 2900x2300x2280mm |
※ The manufacturer reserves right to modify the design , specification mechanisms etc. without notice.

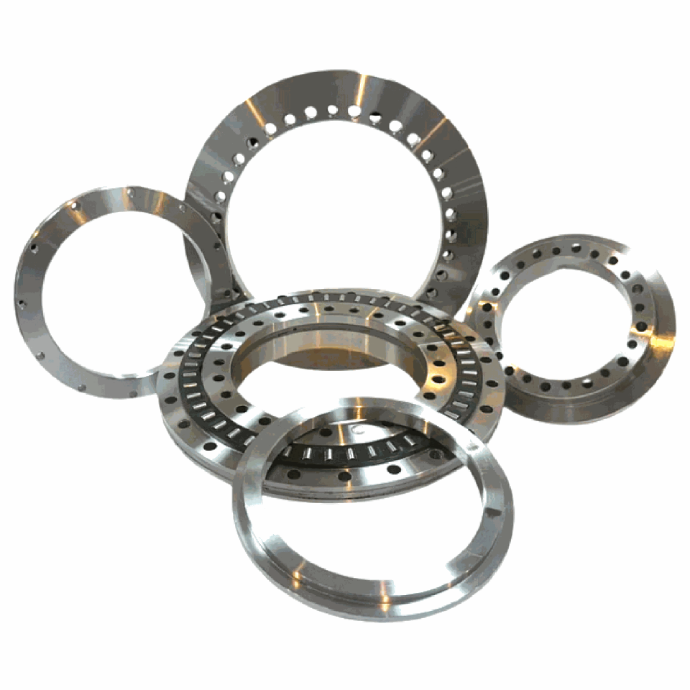

Workpiece Sample
