ROTARY SURFACE GRINDER

HR-600AND HORIZONTAL ROTARY SURFACE GRINDER


HR-600AND Horizontal Spindle Rotary Table Grinder

HR-600AND

DESCRIPTION UNIT HR-600AND
Rotary magnetic chuck dia. mm 600
Maxi grinding radius mm 325
Distance of table surface to spindle surface center mm 450
Rotary magnetic chuck speed r.p.m. 10~150
Rotary magnetic chuck horse power kw 3
Spindle motor HP SIEMENS, V3, 10HP
Spindle speed (50/60Hz) r.p.m. 1450/1750
Auto downfeed horse power W Servo Motor 500
Vertical hand wheel downfeed per revolution MPG/mm x1, x5, x10 /
0.1, 0.5, 1
Vertical hand wheel downfeed per graduation MPG/mm x1, x5, x10 /
0.001, 0.005, 0.01
Wheel size (dia x width x bore) mm 355x38x127
Net weight / gross weight (approx) kg 4600/5200
Packing size (LxWxH) mm 2800x2200x2200

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

  • Si
  • Quariz
  • Ceramics
  • Ceramics Ring
  • Retaining Ring
  • Slitting Saws
  • Slitter Knife
  • Spindle parts
  • Meehanite Class FC 30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine.
  • Spindle lateral design creates stability during heavy cutting.
  • Spindle Siemens V3 Grade motor provides good water proofing resisting moisture.
  • Vertical feeding uses 3 high stiffness and rigidity linear roller guides allowing smoothly vertical feeding whilst maintaining high stiffness.

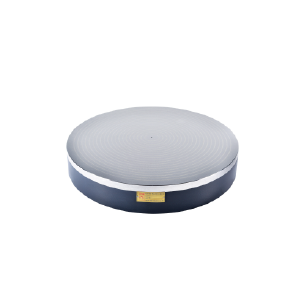

  • Small workpiece suction is accomplished by fine electrical magnetic chuck.

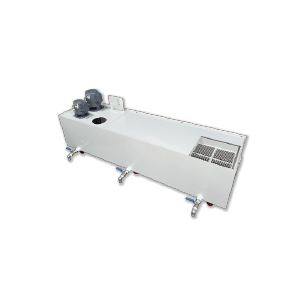

  • Coolant system
    Coolant system

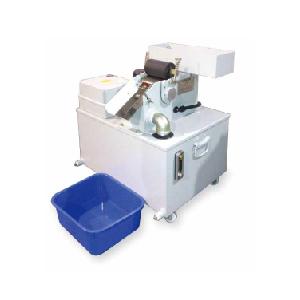

  • Magnetic filter
    Magnetic filter

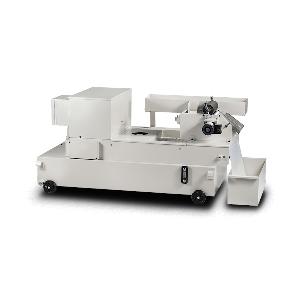

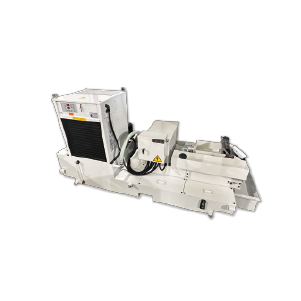

  • Auto. paper strip filter with magnetic separator and coolant system
    Auto. paper strip filter with magnetic separator and coolant system

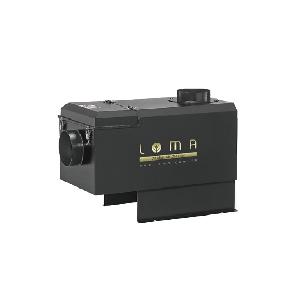

  • Oil mist collector
    Oil mist collector
  • Demagnetizer
    Demagnetizer

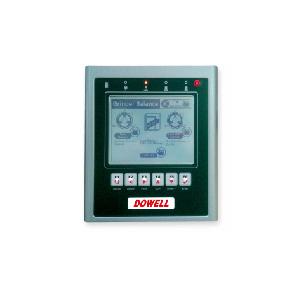

  • On line wheel balance system (Manual)
    On line wheel balance system (Manual)
  • SBS (Auto)
    SBS (Auto)

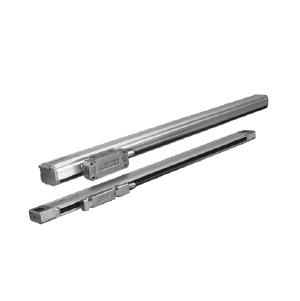

  • Digital readout
    Digital readout

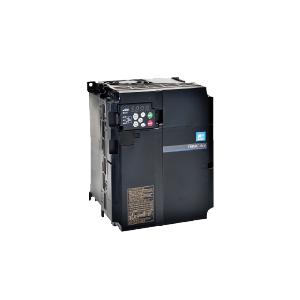

  • Inverter
    Inverter
  • Air-Conditioner
    Air-Conditioner
