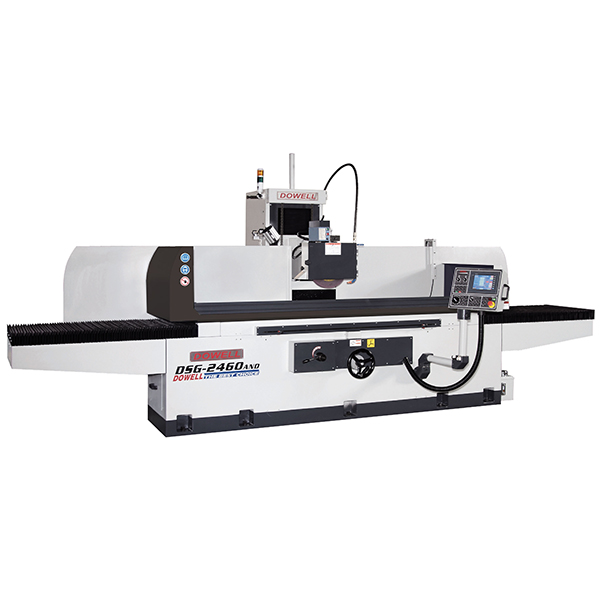

DSG-2460AND : NC Moving Column Surface Grinding Machine


Longitudinal hydraulic cross motor device rapid up & down motorized - MPG

  • 3AH

AND:PLC automatic in 3 axes(x,y,z)

  • option
  • option
  • option
General Capacity Table size (lxw) mm 600x1550
Max.grinding length mm 1500
Max.grinding width mm 600
Distance from table surface to spindle center mm 600/800(opt.)
Standard mag. Chuck size mm 600x1500
Hydraulic traverse mm 1600
Hydraulic feed (table speed) approx. m/min 3~25
Cross Movement Manual travel mm 675
Auto cross feed mm 650
Hand feed per revolution mm 5
Hand feed per graduation mm 0.02
Continuous cross feed (approx.)50/60HZ mm/min 1000
Increment cross feed mm/min 1~20
Vertical Downfeed Rapid traverse (approx.) mm/min 1000
Hand feed per revolution mm/MPG   0.1mm/MPG
Hand feed per graduation mm/MPG   0.001mm/MPG
Auto downfeed rate mm   0.001~0.099
Jog mm   0.001
Pre-set spark out times     0.9(passes)
Manual pulse generator   x1, x5, x10
Grinding Wheel Wheel size (diax width xbore) mm Ø405x50x127
Spindle speed (50/60HZ) r.p.m 1450/1750
Motor Spindle drive motor HP 10
Hydraulic motor HP 5
Cross feed motor HP 1/4 (SIEMENS)
Rapid hand elevatipn servo motor KW 1
Weight Net weight / gross weight (approx.) kg 7500/9000
Packing Size Length × width × height mm 4500x2230x2280

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

  • Grinding wheel
  • Wheel flange with extractor
  • Balancing arbor
  • Diamond dresser and base
  • Working lamp
  • Leveling plate
  • Leveling screw & nut
  • Tool box with tools
  • Operation manual & Inspection report
  • Touch-up paint
  • Machine structure is manufactured from high quality Meehanite class FC cast iron
  • Spindle motor select high stability Siemens motor
  • X and Z axis guide way use double V design
  • The large spindle use CP6 precision angular contact ball bearing (Front 4 and Rear 2) ensure heavy grinding ability.
  • Y and Z axis use precision ball screw
  • Y axis use AC servo motor and go with MPG reach high feeding accuracy
  • Cross stroke adjusting function get rid of inconvenience of traditional sensor and increase grinding efficiency. All guide way and ball screw use automatic lubrication system for forced cycle lubrication (with alarm for oil detective)
  • AND control: The operation modes are easy and simple for user to set up auto grinding.
  • Permanent magnetic chuck
    Permanent magnetic chuck
  • Electro magnetic chuck
    Electro magnetic chuck
  • Demagnetizer
  • Inclinable permanent mag. Chuck
    Inclinable permanent mag. Chuck
  • Coolant & Dust unit
    Coolant & Dust unit
  • Magnetic separator and coolant system
    Magnetic separator and coolant system
  • Auto. Paper Strip Filter with coolant system
    Auto. Paper Strip Filter with coolant system
  • Auto. Paper strip filter with magnetic separator and coolant system
    Auto. Paper strip filter with magnetic separator and coolant system
  • Inverter
  • Demagnetizer
  • Digital readout
    Digital readout
  • On line wheel balance system(Manual)
    On line wheel balance system(Manual)
  • Flange
  • Manual overhead dresser
    Manual overhead dresser
