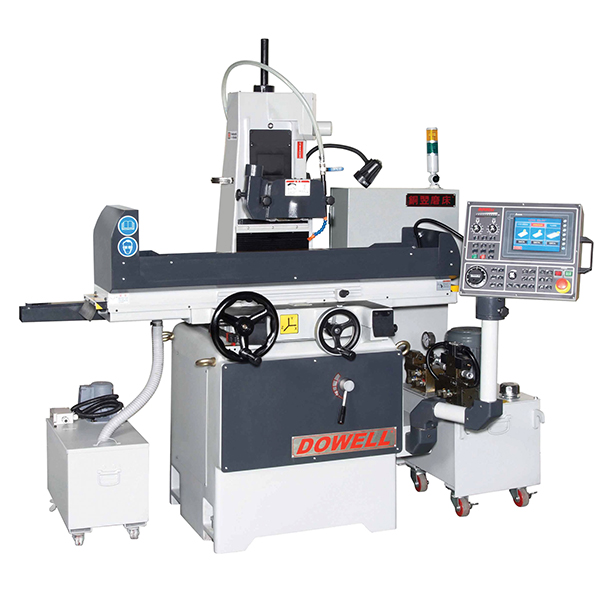

Surface Grinder - Automatic Surface Grinder - DSG-618-818AND


AND:PLC automatic in 3 axis (x.y.z)
AND control

  • option
  • option
  • option
General Capacity Table size (lxw) mm 150x460 200x460
Max.grinding length mm 475
Max.grinding width mm 160 210
Distance from table surface to spindle center mm 400
Standard mag. Chuck size mm 150x450 200x450
Longitudinal Movement Manual travel mm 485
Hydraulic traverse mm 485
Hydraulic feed (table speed) approx. m/min 1~25
Cross Movement Manual travel mm 180 210
Auto cross feed mm 180 210
Hand feed per revolution mm 5
Hand feed per graduation mm 0.02
Continuous cross feed (approx.)50/60HZ mm/min 510/650
Increment cross feed mm/min 0.5~10
Vertical Downfeed Slow traverse (approx.) mm/min 29
Hand feed per revolution mm/MPG 0.1mm/MPG
Hand feed per graduation mm/MPG 0.001mm/MPG
Auto downfeed rate mm 0.001~0.099
Jog mm 0.001
Pre-set spark out times   0.9(passes)
Manual pulse generator   x1, x5, x10
Grinding Wheel Wheel size (diax width xbore) mm Ø180x13x31.75
Spindle speed (50/60HZ) r.p.m 3000/3600
Motor Spindle drive motor HP 2
Hydraulic motor HP 1
Cross feed motor W 25
Rapid hand elevatipn servo motor W 400
Weight Net weight / gross weight (approx.) kg 910/1040
Packing Size Length × width × height mm 1560x1300x2200

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

  • Grinding wheel
  • Wheel flange with extractor
  • Balancing arbor
  • Diamond dresser and base
  • Working lamp
  • Leveling plate
  • Leveling screw & nut
  • Tool box with tools
  • Operation manual & Inspection report
  • Touch-up paint
  • Machine structure is manufactured from high quality Meehanite class FC cast iron
  • Direct type spindle use high precision P4 bearing and V3 grade spindle motor provide excellent rigidity and stability
  • Saddle guide way use double V designed, coated with Turcite-B and hand-scraped provide smooth movement
  • Y and Z axis use precision ball screw
  • Y axis use AC servo motor and go with MPG reach high feeding accuracy
  • Cross stroke adjusting function get rid of inconvenience of traditional sensor and increase grinding efficiency. All guide way and ball screw use automatic lubrication system for forced cycle lubrication (with alarm for oil detective)
  • AND control: The operation modes are easy and simple for user to set up auto grinding.
  • Permanent magnetic chuck
    Permanent magnetic chuck
  • Electro magnetic chuck
    Electro magnetic chuck
  • Demagnetizer
  • Inclinable permanent mag. Chuck
    Inclinable permanent mag. Chuck
  • Coolant & Dust unit
    Coolant & Dust unit
  • Magnetic separator and coolant system
    Magnetic separator and coolant system
  • Auto. Paper Strip Filter with coolant system
    Auto. Paper Strip Filter with coolant system
  • Auto. Paper strip filter with magnetic separator and coolant system
    Auto. Paper strip filter with magnetic separator and coolant system
  • Inverter
  • Demagnetizer
  • Digital readout
    Digital readout
  • On line wheel balance system(Manual)
    On line wheel balance system(Manual)
  • Flange
  • Angle sine dresser
    Angle sine dresser
  • Precision universal angle vise
    Precision universal angle vise
  • Tangimatic dresser
    Tangimatic dresser
