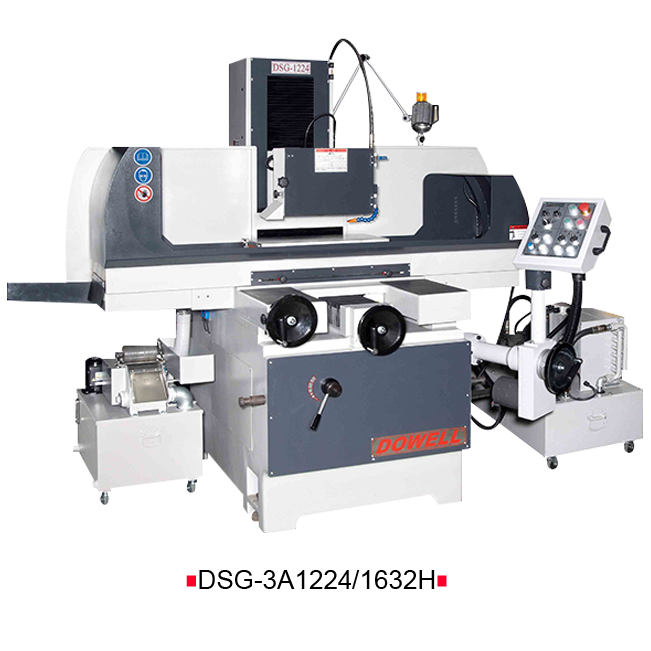

DSG-3A820H~2460H Semi Auto Precision Surface Grinder Solutions

Features

Rigid CONSTRUCTION：The base, saddle, heavily ribbed column, table and wheel head are "MEEHANINTE" casting which are produced by our related corporation and through internal stress elimination (annealing and seasoning), which assures the highest accuracy and long life.
TURCITE-B slide way：All slide ways are coated with TURCITE-B and then hand scraped for precision operation and longevity.
SPINDLE：The V3 graded motor directly coupled to the cartridge style spindle, which is supported by P4 super precision preloaded bearing with sealed lubrication to ensure the run out within 2* and high durability.
AUTO LUBRICATION SYSTEM：The automatic lubrication system is furnished as standard to provide ample lubrication on all slide ways and leadscrews whenever the spindle is under the power, thus assuring smooth table movement.

Specification

Description	DSG-3A820H	DSG-3A1224H	DSG-3A1632H	DSG-3A2040H	DSG-3A2060H	DSG-3A2450H	DSG-3A2460H
General Capacity
Table size (lxw)	200x510mm	300x600mm	400x800mm	500x1050mm	500x1550mm	600x1250mm	600x1550mm
Max.grinding length	550mm	650mm	850mm	1050mm	1550mm	1250mm	1500mm
Max.grinding width	220mm	340mm	450mm	500mm	500mm	600mm	600mm
Distance from table surface to spindle center	380mm	600mm	600/800mm(Opt.)	600/800mm(Opt.)	600/800mm(Opt.)	600/800mm(Opt.)	600/800mm(Opt.)
Standard mag. Chuck size	200x500mm	300x600mm	400x800mm	500x1000mm	500x1500mm	600x1200mm	600x1500mm
Longitudinal Movement
Manual travel	600mm	700mm	900mm	-	-	-	-
Hydraulic traverse	510mm	650mm	850mm	1100mm	1600mm	1300mm	1600mm
Hydraulic feed (table speed) approx.	1~25m/min	3~25m/min	3~25m/min	3~25m/min	3~25m/min	3~25m/min	3~25m/min

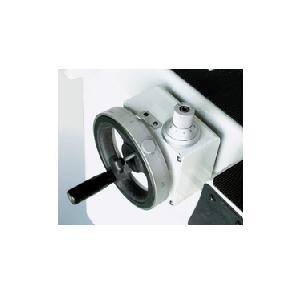

Cross Movement
Manual travel	230mm	340mm	450mm	575mm	575mm	675mm	675mm
Auto cross feed	230mm	310mm	420mm	550mm	550mm	650mm	650mm
Hand feed per revolution	5mm	5mm	5mm	5mm	5mm	5mm	5mm
Hand feed per graduation	0.02mm	0.02mm	0.02mm	0.02mm	0.02mm	0.02mm	0.02mm
Continuous cross feed (approx.)50/60HZ	510/650mm/min	1100mm/min	1100mm/min	1000mm/min	1000mm/min	1000mm/min	1000mm/min
Increment cross feed	0.5~10mm/min	1~20mm/min	1~20mm/min	1~20mm/min	1~20mm/min	1~20mm/min	1~20mm/min
Vertical Down feed
Rapid traverse (approx.)	230mm/min	350mm/min	350mm/min	800mm/min	800mm/min	800mm/min	800mm/min
Slow traverse (approx.) mm/min - 29	29mm/min	29mm/min	29mm/min	-	-	-	-
Hand feed per revolution	1mm	1mm	1mm	1mm	1mm	1mm	1mm
Hand feed per graduation	0.005mm	0.005mm	0.005mm	0.005mm	0.005mm	0.005mm	0.005mm
Auto down feed rate	0.001~0.099mm	0.001~0.099mm	0.001~0.099mm	0.001~0.06mm	0.001~0.06mm	0.001~0.06mm	0.001~0.06mm
Jog	0.001mm	0.001mm	0.001mm	0.001mm	0.001mm	0.001mm	0.001mm
Pre-set spark out times	0~9(passes)	0~9(passes)	0~9(passes)	0~99(passes)	0~99(passes)	0~99(passes)	0~99(passes)

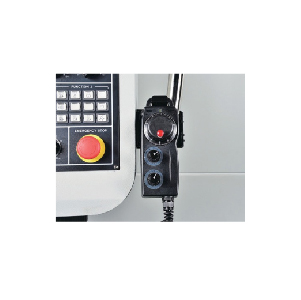

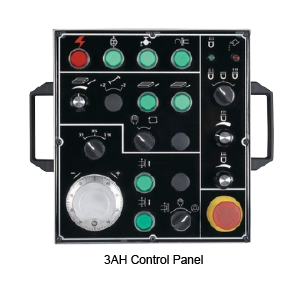

Manual pulse generator	x1, x5, x10	x1, x5, x10	x1, x5, x10	x1, x5, x10	x1, x5, x10	x1, x5, x10	x1, x5, x10

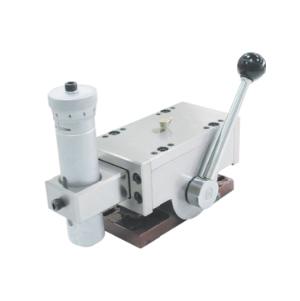

Grinding Wheel
Wheel size (dia x width x bore)	180x13x31.75mm	355x38x127mm	355x38x127mm	355x38x127mm	355x38x127mm	405x50x127mm	405x50x127mm
Spindle speed (50/60HZ)	3000/3600r.p.m.	1450/1750r.p.m.	1450/1750r.p.m.	1450/1750r.p.m.	1450/1750r.p.m.	1450/1750r.p.m.	1450/1750r.p.m.
Motor
Spindle drive motor	3HP	5/7.5HP(Opt.)	7.5/10HP(Opt.)	7.5/10HP(Opt.)	7.5/10HP(Opt.)	10HP	10HP
Hydraulic motor	1HP	2HP	2HP	5HP	7.5HP	7.5HP	7.5HP
Cross feed motor	40W	40W	40W	1/4HP(SIEMENS)	1/4HP(SIEMENS)	1/4HP(SIEMENS)	1/4HP(SIEMENS)
Rapid hand elevation servo motor	400W	400W	400W	1KW	1KW	1.5KW	1.5KW
Weight
Net weight / gross weight (approx.)	1470/1620kg	2350/2550kg	3000/3450kg	5900/6900kg	7100/8600kg	6600/7900kg	7500/9000kg
Packing Size
Length × width × height	1780x1600x2200mm	2400x1900x2280mm	2800x2100x2280mm	3600x2230x2280mm	4500x2230x2280mm	4200x2230x2280mm	4500x2230x2280mm
