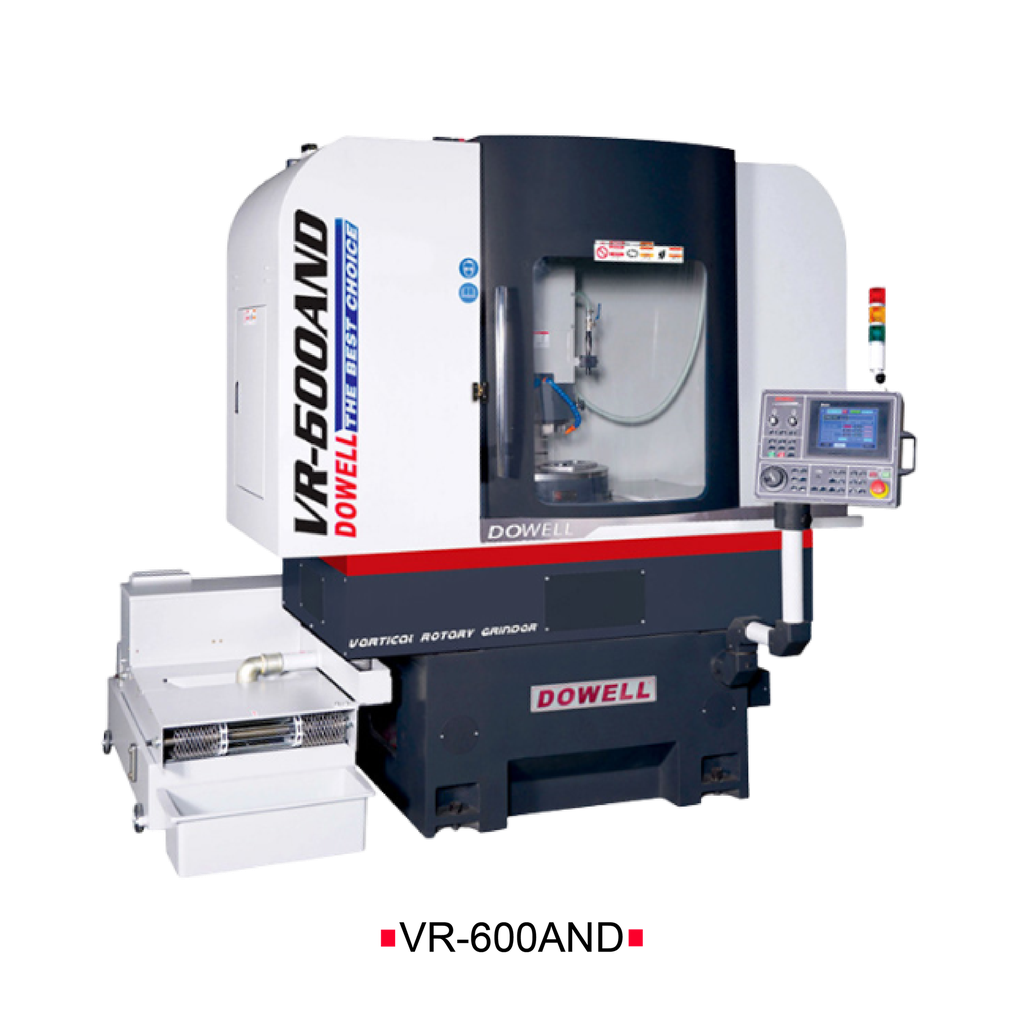

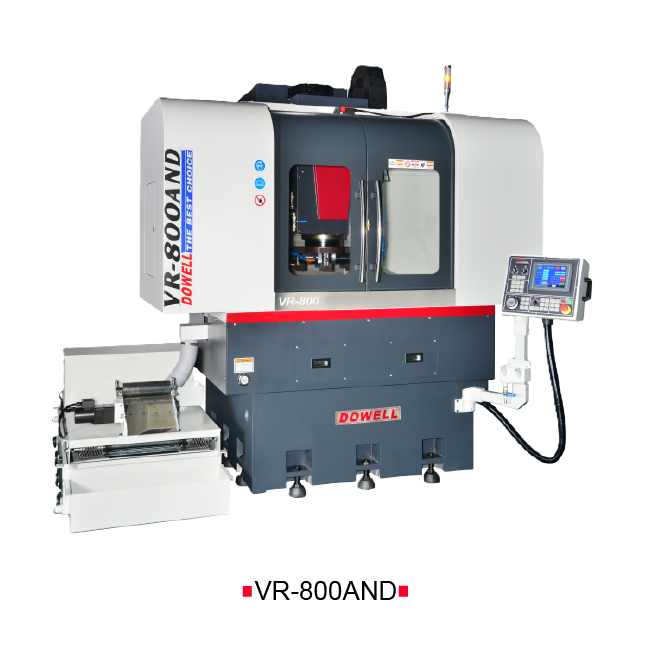

Features
- Meehanite Class FC30 casting with high rigid and wear resistance guide way insure machine permanent accuracy.
- Spindle is designed for providing excellent stability and heavy duty grinding.
- V3 grade spindle motor with good waterproof and moisture resistant design.
- Vertical feeding guide way use high rigid roller linear guideway (block x 6) provide smooth movement and rigidity.
- Work table with fine pitch magnetic chuck has powerful attractive force and specalized for small workpiece.
Specification
| Description | VR-600AND | VR-800AND | VR-1000AND |
| Rotary magnetic chuck dia. | 600mm | 800mm | 1000mm |
| Max. grinding height | 300mm | 400mm | 500mm |
| Distance of table surface to spindle surface center | 325mm | 260mm | 400mm |
| Rotary magnetic chuck speed | 5~50r.p.m. | 10~20r.p.m. | 5~20r.p.m. |
| Rotary magnetic chuck horse power | 3kw | 4.5kw | 7kw |
| Spindle speed | 15HP/20HP (Opt.) | 30HP | 50HP |
| Spindle speed (50/60Hz) | MAX 1200r.p.m. | 1450/1750r.p.m. | 870/1175r.p.m. |
| Auto down feed horse power | Servo Motor 500w | 2kw | 1.5kw |
| Vertical hand wheel down feed per revolution | x1, x5, x10(MPG)/ 0.1, 0.5, 1mm | x1, x5, x10(MPG)/ 0.1, 0.5, 1mm | x1, x5, x10(MPG)/ 0.1, 0.5, 1mm |
| Vertical hand wheel down feed per graduation | x1, x5, x10(MPG)/ 0.001, 0.005, 0.01mm | x1, x5, x10(MPG)/ 0.001, 0.005, 0.01mm | x1, x5, x10(MPG)/ 0.001, 0.005, 0.01mm |
| Wheel size (dia x width x bore) | 150x50x25mmx8(pcs) | (80~90)x30x140mmx8pcs | 150x50x25mmx8(pcs) |
| Net weight / gross weight (approx.) | 2800/3400kg | 8000/9000kg | 13000/14000kg |
| Packing size (LxWxH) | 2800x2300x2280mm | 3600x2600x2960cm | 5100x2950x3200mm |
※ The manufacturer reserves right to modify the design , specification mechanisms etc. without notice.

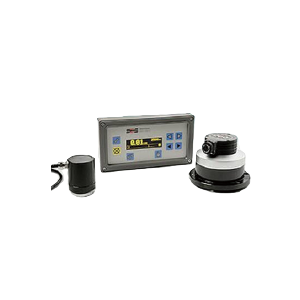

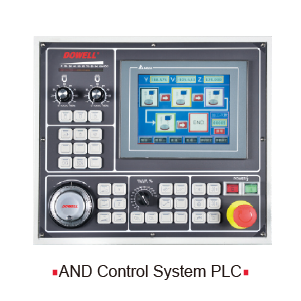

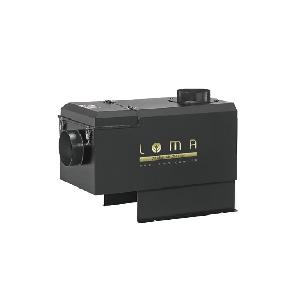

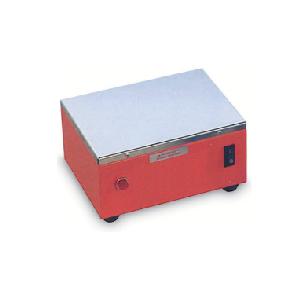

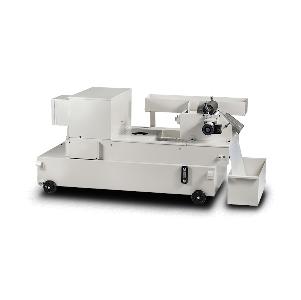

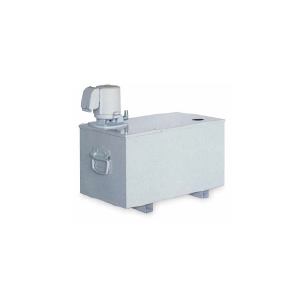

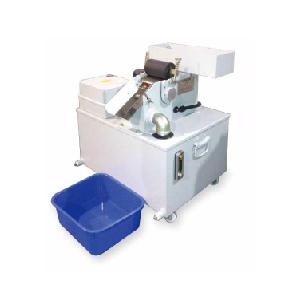

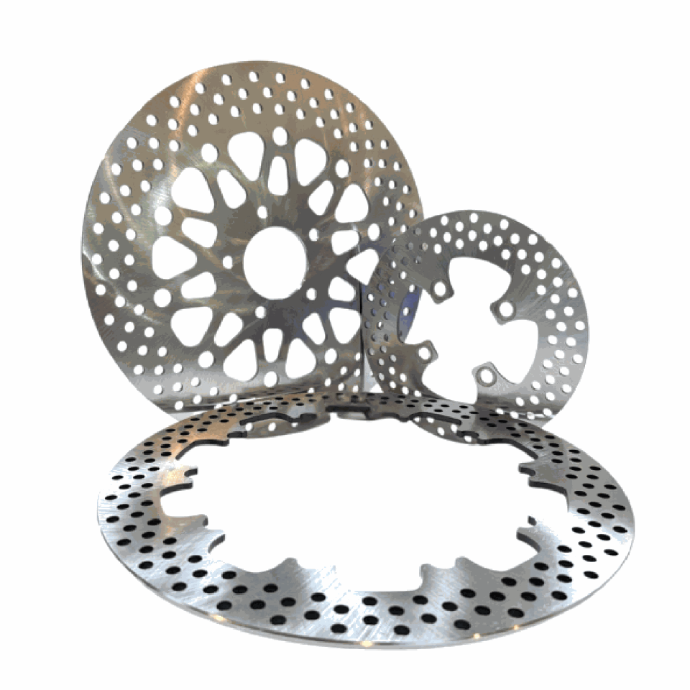

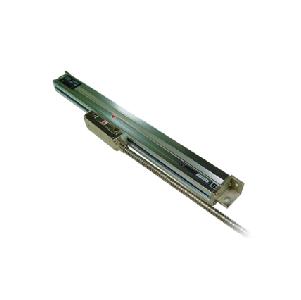

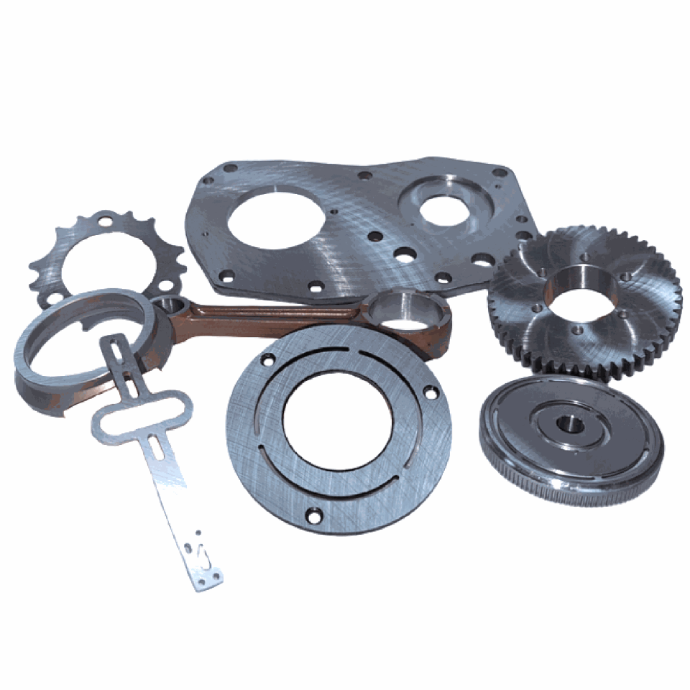

Workpiece Sample
