Features
- Vertical feeding use high stiffness box ways、precisely scraped, and Ø50mm ball screw.
- X axis use high stiffness and rigidity linear roller guideway (RG65) and block X6.
- X axis use high precision rack and pinion system for high rapid and smooth movement.
- Vertical feeding use high stiffness box ways、precisely scraped, and Ø40mm ball screw.
- X axis use linear roller guideway X3 (RG35) and block X8.

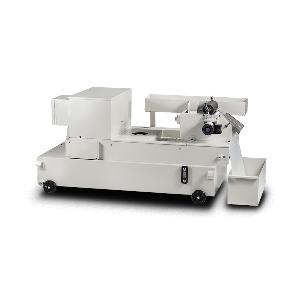

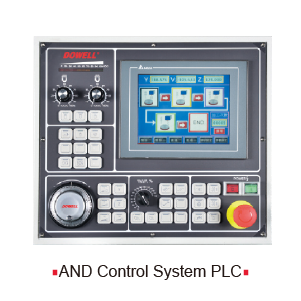

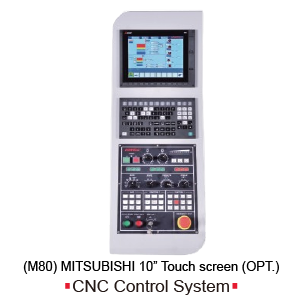

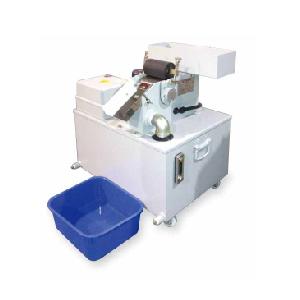

Specification

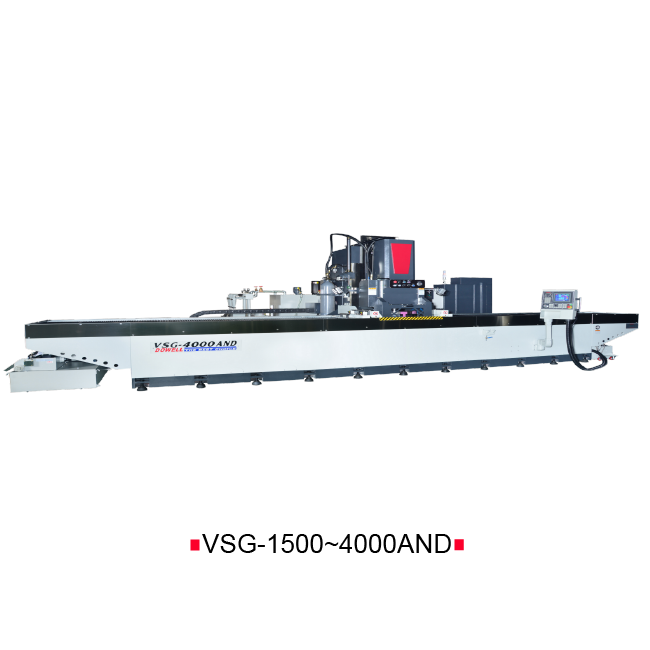

| Description | VSG-1500 | VSG-2000 | VSG-2500 | VSG-3000 | VSG-4000 | |
| General Capacity | ||||||
| Table size (LxW) | 300x1500mm
| 300x2000mm
| 300x2500mm | 300x3000mm | 400x4000mm | |
| Distance from table surface to spindle center | 250mm | 250mm | 250mm | 250mm | 300mm | |
| Longitudinal Movement | ||||||
| Servo motor feed (table speed) approx(OPT.) | 0~20M | 0~20M | 0~20M | 0~20M | 0~15M | |
| Vertical Down feed | ||||||
| Increment cross feed | 500mm/min | 500mm/min | 500mm/min | 500mm/min | 500mm/min | |
| M.P.G | X1：0.001mm X5：0.005mm X10：0.01mm X50：0.05mm | X1：0.001mm X5：0.005mm X10：0.01mm X50：0.05mm | X1：0.001mm X5：0.005mm X10：0.01mm X50：0.05mm | X1：0.001mm X5：0.005mm X10：0.01mm X50：0.05mm | X1：0.001mm X5：0.005mm X10：0.01mm X50：0.05mm | |
| Grinding Wheel | ||||||
| Wheel size (dia x width x bore) | 140x50x25mm | 140x50x25mm | 140x50x25mm | 140x50x25mm | 160x(90x80)x30mm | |
| Spindle speed (50/60HZ) | 0~1200r.p.m. | 0~1200r.p.m. | 0~1200r.p.m. | 0~1200r.p.m. | 0~800r.p.m. | |
| Motor | ||||||
| Spindle drive motor | 25HP | 25HP | 25HP | 25HP | 50HP | |
| Y servo motor | 2KW | 2KW | 2KW | 2KW | 3KW | |
| X servo motor(OPT.) | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 3KW | |
| Weight | ||||||
| Net weight/gross weight (approx.) | 7500/8500kg | 8500/8500kg | 8500/10500kg | 10500/11500kg | 22000/24500kg | |
| Packing Size | ||||||
| Length × width × height | 5000x2280x2280mm | 5500x2280x2280mm | 5900x2280x2280mm | 6500x2280x2280mm | 10000x2280x2280mm |
※ The manufacturer reserves right to modify the design , specification mechanisms etc. without notice.
Workpiece Sample

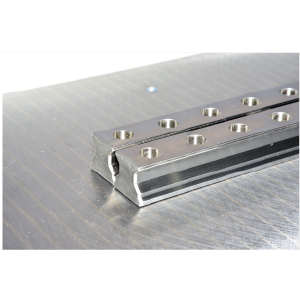

Linear roller guideway surface grinding

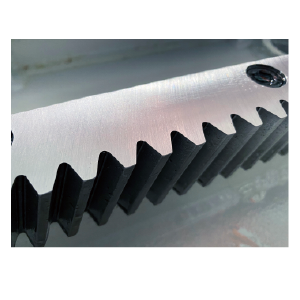

Rack surface grinding

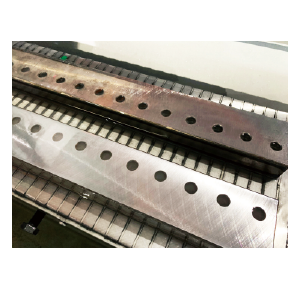

Rails surface grinding
