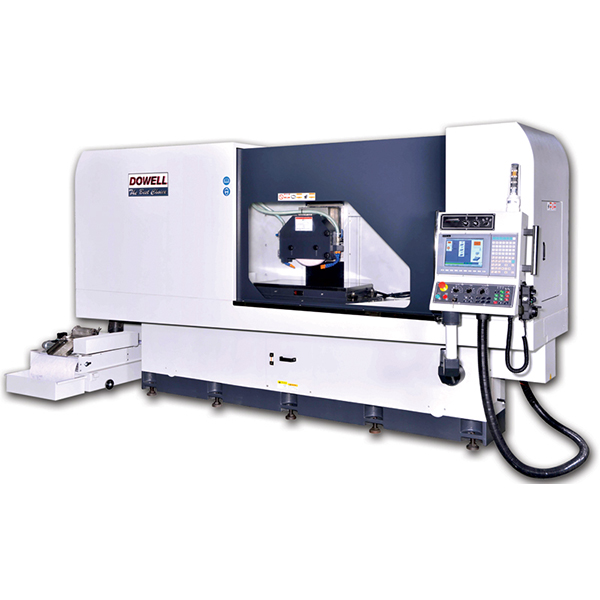

CNC Surface Grinder - DSG-1660CNC

Enlarge

DSG-1660CNC

Control system

MITSUBISH (STD.)

FANUC / (OPT.)

Dressing Select

Grinding Select

Enlarge

  • Machine main castings use “MEEHANITE” Class FC and aged naturally through time allowing longtimestructural
  • stability.
  • Machine base fully supported design creating high rigidity structure.
  • Y and Z axis use precision ball screw driven by AC servo motor
  • X axis use double V guide way design and driven by hydraulic
  • Y (Vertical)) ad Z (Cross) axis use high rigid roller guide way driven by AC servo motor. Y axis (Vertical) use high precision gear reducer provides perfect micro feeding.
  • The large spindle use CP6 precision angular contact ball bearing (Front 4 and Rear 2) ensure heavy grinding ability.
  • Closure type water-proof guard.
  • Diamond dresser Diamond
DESCRIPTION UNIT DSG-1660CNC
General Capacity Table size (L x W) mm 1500x450
Distance from table surface to spindle center mm 680
Longitudinal
Movement
Hydraulic feed (table speed )approx m/min 5~25
Servo motor feed (table speed )approx m/min 1~15
Cross Movement Increment cross feed mm/min 1000
(M.P.G) mm X1:0.001
X10:0.01
X100:0.1
Vertical Downfeed Increment cross feed mm/min 1000
(M.P.G) mm X1:0.001
X10:0.01
X 100:0.1
Grinding Wheel Wheel size (Dia x Width x Bore) mm 405×50×127
Spindle speed (50/60HZ) r.p.m. 1450/1750
Motors Spindle drive motor HP 10
Hydraulic motor HP 5
Y servo motor W 950
Z servo motor W 500
X servo motor (opt.) kw 3
Weight Net weight/gross weight (approx.) kg 6000/7000
Packing Size Length x Width x Height cm 520×228×228

The manufacturer reserves right to modify the design,specification mechanisms etc.
without notice.

Magnetic Filter

Auto paper strip filter with magnetic separator and coolant system

Oil mist collector

Oil cooler

Inverter

On line wheel balance system (manual)

On line wheel balance system (auto)

Digital readout

CNC rotary table

Roller dresser
