CNC SURFACE GRINDER

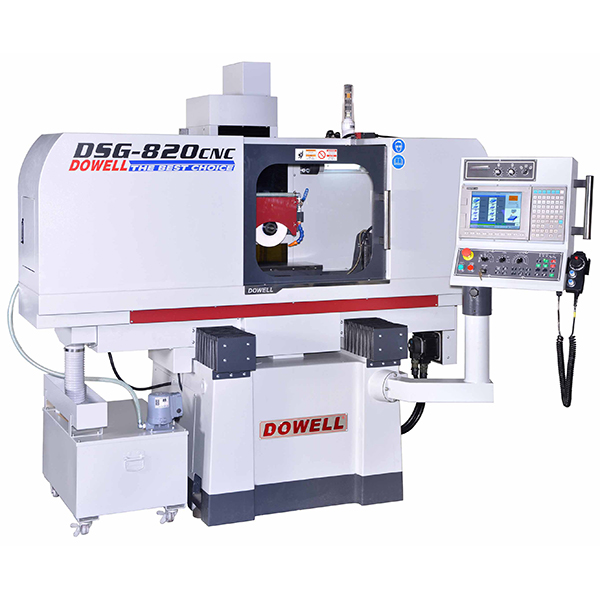

DSG-820CNC CNC SURFACE GRINDER


CNC Surface Grinder - DSG-820CNC

DSG-820CNC

Control system

  • MITSUBISH (STD.)
    MITSUBISH (STD.)
  • FANUC / (OPT.)
    FANUC / (OPT.)

Dressing Select

  • Dressing Select

Grinding Select

  • MITSUBISH (STD.)
DESCRIPTION UNIT DSG-820CNC
General Capacity Table size (L x W) mm 500x200
Distance from table surface to spindle center mm 450
Longitudinal
Movement
Hydraulic feed (table speed )approx m/min 5~25
Servo motor feed (table speed )approx m/min 1~15
Cross Movement Increment cross feed mm/min 1000
(M.P.G) mm X1:0.001
X10:0.01
X100:0.1
Vertical Downfeed Increment cross feed mm/min 1000
(M.P.G) mm X1:0.001
X10:0.01
X 100:0.1
Grinding Wheel Wheel size (Dia x Width x Bore) mm 180×13×31.75
Spindle speed (50/60HZ) r.p.m. 3000/3600
Motors Spindle drive motor HP 2HP opt. 3HP
Hydraulic motor HP 2
Y servo motor W 500
Z servo motor W 500
X servo motor (opt.) W 500
Weight Net weight/gross weight (approx.) kg 1720/2300
Packing Size Length x Width x Height cm 230×210×220

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

  • Workpiece Sample
  • Workpiece Sample
  • Workpiece Sample
  • Workpiece Sample
  • Workpiece Sample
  • Workpiece Sample
  • Machine main castings use “MEEHANITE” Class FC and aged naturally through time allowing longtimestructural
  • stability.
  • Machine base fully supported design creating high rigidity structure.
  • Y and Z axis use precision ball screw driven by AC servo motor
  • X axis use double V guide way design and driven by hydraulic
  • Y (Vertical)) ad Z (Cross) axis use high rigid roller guide way driven by AC servo motor. Y axis (Vertical) use high precision gear reducer provides perfect micro feeding.
  • The large spindle use CP6 precision angular contact ball bearing (Front 4 and Rear 2) ensure heavy grinding ability.
  • Closure type water-proof guard.
  • Diamond dresser Diamond
  • Magnetic Filter
    Magnetic Filter
  • Auto paper strip filter with magnetic separator and coolant system
    Auto paper strip filter with magnetic separator and coolant system
  • Oil mist collector
    Oil mist collector
  • Oil cooler
    Oil cooler
  • Inverter
    Inverter
  • On line wheel balance system (manual)
    On line wheel balance system (manual)
  • On line wheel balance system (auto)
    On line wheel balance system (auto)
  • Digital readout
    Digital readout
  • CNC rotary table
    CNC rotary table
  • Roller dresser
    Roller dresser
