VHR-500


New Series - VHR-500

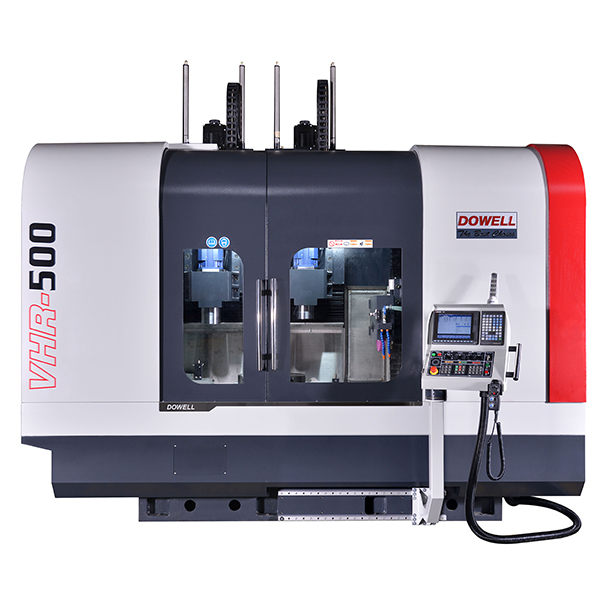

VHR-500

Control system

  • MITSUBISH (STD.)
    MITSUBISH (STD.)
  • FANUC / (OPT.)
    FANUC / (OPT.)

Schematic View

  • Schematic View
  • Meehanite Class FC30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine.
  • Vertical Y axis uses Class 1 ball screw Ø50 provides high stability during feeding.
  • Vertical and longitudinal feeding uses high stiffness and rigidity linear roller guides made in Japan (slide block x6) provides smooth feeding but still maintain high stiffness.
  • Vertical spindle Y axis uses peumatic counterweigh to reduce ball screw and servo motor loading to make movement more smoothly and extend the use of life.
  • Horizontal Spindle uses six high precision ball bearing for heavy grinding.
  •  Flange / Grinding arbor
    Flange / Grinding arbor
  • Auto. paper strip filter with magnetic separator and coolant system
    Auto. paper strip filter with magnetic separator and coolant system
  •  Oil mist collector
    Oil mist collector
  • Inverter
    Inverter
  •  Air-Conditioner
    Air-Conditioner
  • On line wheel balance system (Auto)
Horizontal Spindle
    On line wheel balance system (Auto) Horizontal Spindle
  • Digtial readout
(FAGOR/HEIDENHAIN)
    Digtial readout (FAGOR/HEIDENHAIN)
  •  3-Jaw chucks
    3-Jaw chucks
  • Magnetic chuck
    Magnetic chuck
  • Tank cooling unit
    Tank cooling unit
  • MAIN PROCESSING ITEM
