NEW SERIES

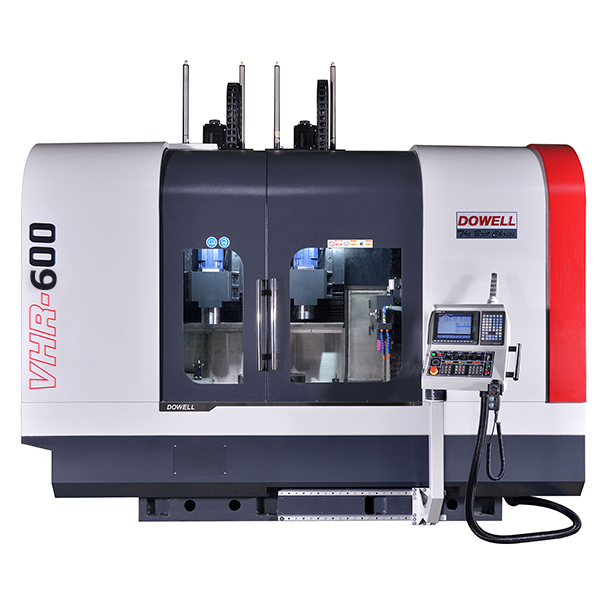

VHR-600


New Series - VHR-600

VHR-600

Control system

  • MITSUBISH (STD.)
    MITSUBISH (STD.)
  • FANUC / (OPT.)
    FANUC / (OPT.)

Schematic View

  • Schematic View
  • Meehanite Class FC30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine.
  • Vertical Y axis uses Class 1 ball screw Ø50 provides high stability during feeding.
  • Vertical and longitudinal feeding uses high stiffness and rigidity linear roller guides made in Japan (slide block x6) provides smooth feeding but still maintain high stiffness.
  • Vertical spindle Y axis uses peumatic counterweigh to reduce ball screw and servo motor loading to make movement more smoothly and extend the use of life.
  • Horizontal Spindle uses six high precision ball bearing for heavy grinding.
DESCRIPTION UNIT VHR-600
Table size mm Ø600
Processing travel-vertical spindle Grinding inside diameter - Ø60~Ø550
Grinding outside diameter - Max. Ø600
Table maxi grinding radius (horizontal spindle) mm 325
Distance of table surface to spindle surface top (vertical spindle) mm 380
Distance of table surface to spindle surface center (horizontal spindle) mm 500
Table load kg 280
Table speed r.p.m 25~150
Workpiece grinding height (vertical spindle) mm Max. 300
Workpiece grinding height (horizontal spindle) mm Max. 350
Horizontal spindle horse power KW/HP 7.5/10
Vertical spindle horse power (inside diameter) KW/HP 2.2/3
Vertical spindle horse power (outside diameter) KW/HP 3.7/5
Horizontal spindle speed 50/60Hz r.p.m 1450/1750
Vertical spindle speed (inside diameter) r.p.m Max. 8500
Vertical spindle speed (outside diameter) r.p.m Max. 4200
Wheel size Horizontal axis : dia x width x bore mm Std.Ø355x38x127
Opt. Ø405x50x127
Vertical inside diameter : dia x high mm Min.Ø65x30
Max. Ø110x30
Vertical outside diameter : dia x high mm Max. Ø205x50
Net weight/gross weight (approx) kg 14000/15500
Packing size (LxWxH) mm 5500x2300x3700

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

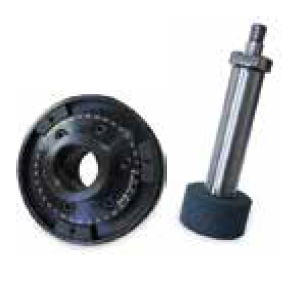

  •  Flange / Grinding arbor
    Flange / Grinding arbor

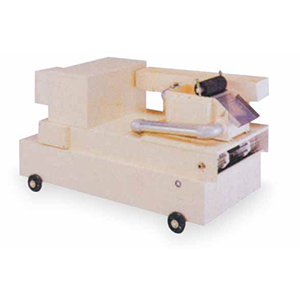

  • Auto. paper strip filter with magnetic separator and coolant system
    Auto. paper strip filter with magnetic separator and coolant system

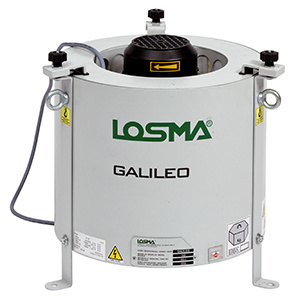

  •  Oil mist collector
    Oil mist collector

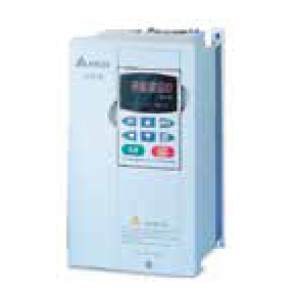

  • Inverter
    Inverter

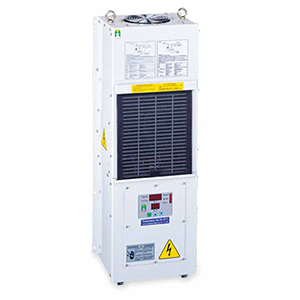

  •  Air-Conditioner
    Air-Conditioner

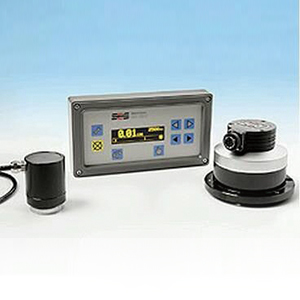

  • On line wheel balance system (Auto)
Horizontal Spindle
    On line wheel balance system (Auto) Horizontal Spindle

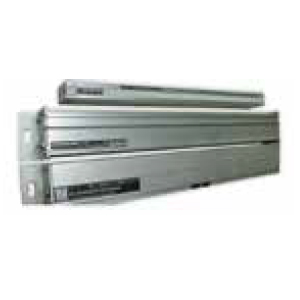

  • Digtial readout
(FAGOR/HEIDENHAIN)
    Digtial readout (FAGOR/HEIDENHAIN)

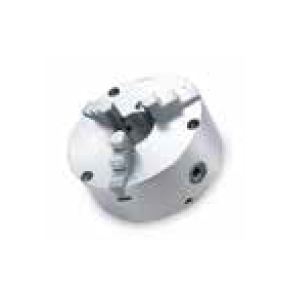

  •  3-Jaw chucks
    3-Jaw chucks

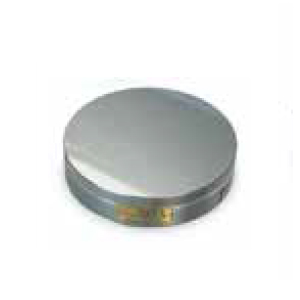

  • Magnetic chuck
    Magnetic chuck

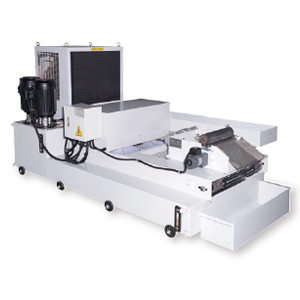

  • Tank cooling unit
    Tank cooling unit

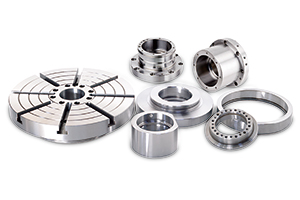

  • MAIN PROCESSING ITEM
