New Series - RG-1500CNC

RG-1500CNC

  • Meehanite Class FC30 casting with high riqid and wear resistance guide way insure machine permanent accuracy.
  • X,Y,Z axis (Longitudinal ,Vertical ,Cross) uses Ø63 ballscrew; provides high stability during grinding.
  • Enhanced rib & box structure design strengthen machine rigidity greatly. X, Y and Z Axis uses high precision roller Iinear guideway(55/65). Conventional covers protects the guideway from water, ensures the smooth movement and infeed accuracy, and also increase the life time of usage.
  • Customized diamond roller dresser can be fit on the side of the table(for straight tooth) or on top of wheel(for helical tooth)provides fast and efficient dressing .
  • Twin-pump, high pressure motor, and temperature controlling device enhanced heat dissipation, which insures best workpiece accuracy.
DESCRIPTION UNIT RG-1500CNC
General Capacity Table size (lxw) mm 400x1500
Max.grinding length (Chuck surface) mm 1500
Max.grinding width (Chuck surface) mm 400
Distance from table surface to spindle center mm 500
Std. Magnetic Chuck size mm 400x1500
Vertical Downfeed Infeed Travel mm 300
Ballscrew Per Revolution mm 10
Hand Feed Per Revolution - x1, x10, x100
0.001, 0.01, 0.1 /MPG
Rapid traverse m/min 2000
Longitudinal Movement Infeed Travel mm 1500
Ballscrew Per Revolution mm 10
Hand Feed Per Revolution - x1, x10, x100
0.001, 0.01, 0.1 /MPG
Rapid traverse m/min 3
Cross Movement Infeed Travel mm 400
Ballscrew Per Revolution mm 20
Hand Feed Per Revolution - x1, x10, x100
0.001, 0.01, 0.1 /MPG
Rapid traverse m/min 10
Grinding Wheel Wheel Size (OD x W x Bore) mm Ø405x50x127
OPT Ø405x75x127
Spindle Speed(50/60Hz) rpm 1450/1750
Motor Spindle Motor HP 25
Guideway Lubrication Motor W 25x3
Coolant Motor HP 2HPx2pcs
Oil & Mist Chiller HP 2
Coolant Tank Chiller HP 2
Roller Dressing Motor KW 1
X Axis Motor KW 4.5
Y Axis Motor KW 3.5
Z Axis Motor KW 7
Weight Net Weight / Gross Weight kg 18500/20000

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

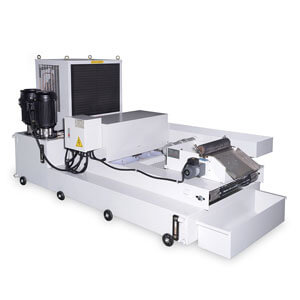

  • Auto paper strip fiter with magnetic separator and coolant system Tank cooling unit
    Auto paper strip fiter with magnetic separator and coolant system Tank cooling unit

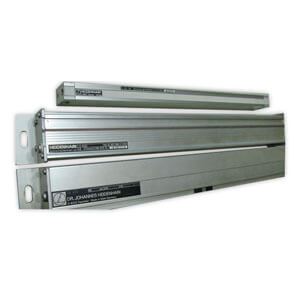

  • Y-axis vertical / X-axis horizontal Digital readout (FAGOR / HEIDENHAIN)
    Y-axis vertical / X-axis horizontal Digital readout (FAGOR / HEIDENHAIN)

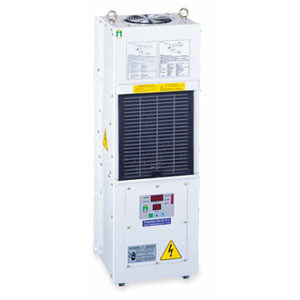

  • Air-Conditioner
    Air-Conditioner

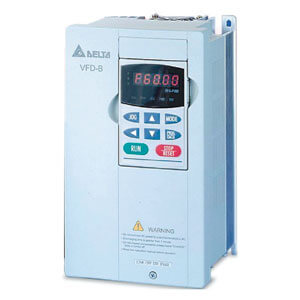

  • Inverter
    Inverter

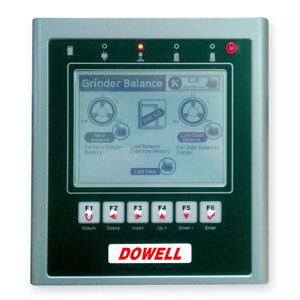

  • On line wheel balance system - manual
    On line wheel balance system - manual

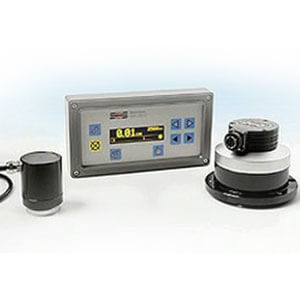

  • SBS On line wheel balance system - Auto (OPT)
    SBS On line wheel balance system - Auto (OPT)

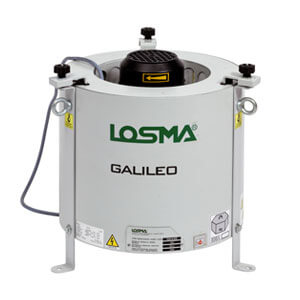

  • Oil mist collector
    Oil mist collector

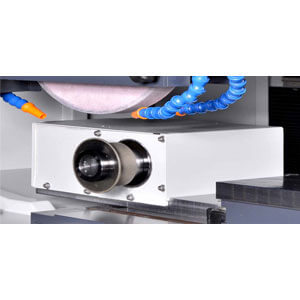

  • Roller dresser
    Roller dresser

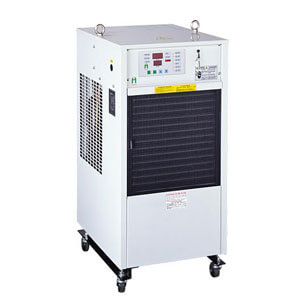

  • Lubrication oil chiller
    Lubrication oil chiller

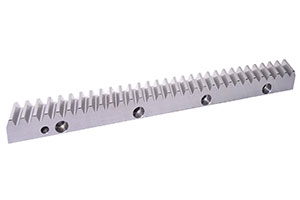

  • Rack
    Rack
