ROTARY SURFACE GRINDER

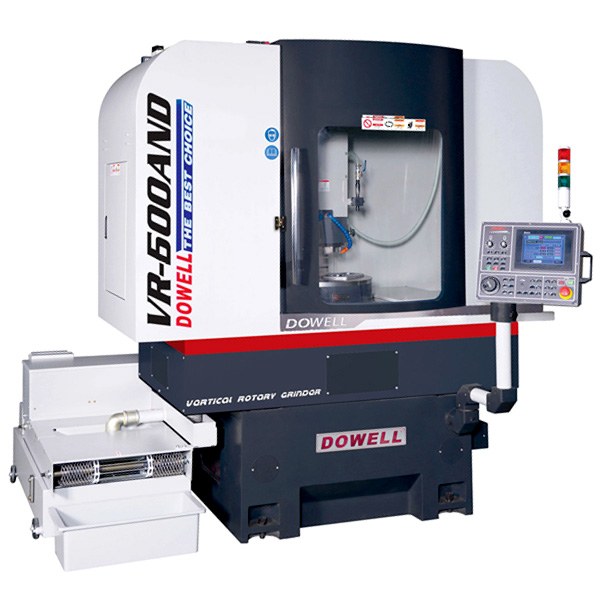

VR-600AND VERTICAL ROTARY SURFACE GRINDER


Rotary Surface Grinder - Vertical Rotary Surface Grinder - VR-600AND

VR-600AND

DESCRIPTION UNIT VR-600AND
Rotary magnetic chuck dia. mm 600
Maxi grinding radius mm 325
Distance of table surface to spindle surface center mm 325
Rotary magnetic chuck speed r.p.m. 5~50
Rotary magnetic chuck horse power kw 3
Spindle motor HP 15/20
Spindle speed (50/60Hz) r.p.m. 1450/1750
Auto downfeed horse power kw 1
Vertical hand wheel downfeed per revolution MPG/mm x1, x5, x10 /
0.1, 0.5, 1
Vertical hand wheel downfeed per graduation MPG/mm x1, x5, x10 /
0.001, 0.005, 0.01
Wheel size (dia x width x bore) mm 150x50x25x8
Net weight / gross weight (approx) kg 4800/5500
Packing size (LxWxH) mm 3000x1500x2300

※ The manufacturer reserves right to modify the design,specification mechanisms etc. without notice.

  • Si
  • Quariz
  • Ceramics
  • Ceramics Ring
  • Retaining Ring
  • Slitting Saws
  • Slitter Knife
  • Spindle parts
  • Meehanite Class FC 30 casting with slide way provides high stiffness and wear resistance maintaining the accuracy of the machine.
  • Spindle lateral design creates stability during heavy cutting.
  • Spindle Siemens V3 Grade motor provides good water proofing resisting moisture.
  • Vertical feeding uses 3 high stiffness and rigidity linear roller guides allowing smoothly vertical feeding whilst maintaining high stiffness.
  • Small workpiece suction is accomplished by fine electrical magnetic chuck.
  • Coolant system
    Coolant system
  • Magnetic filter
    Magnetic filter
  • Auto. paper strip filter with magnetic separator and coolant system
    Auto. paper strip filter with magnetic separator and coolant system
  • Oil mist collector
    Oil mist collector
  • Demagnetizer
    Demagnetizer
  • On line wheel balance system (Manual)
    On line wheel balance system (Manual)
  • SBS (Auto)
    SBS (Auto)
  • Digital readout
    Digital readout
  • Inverter
    Inverter
  • Air-Conditioner
    Air-Conditioner
